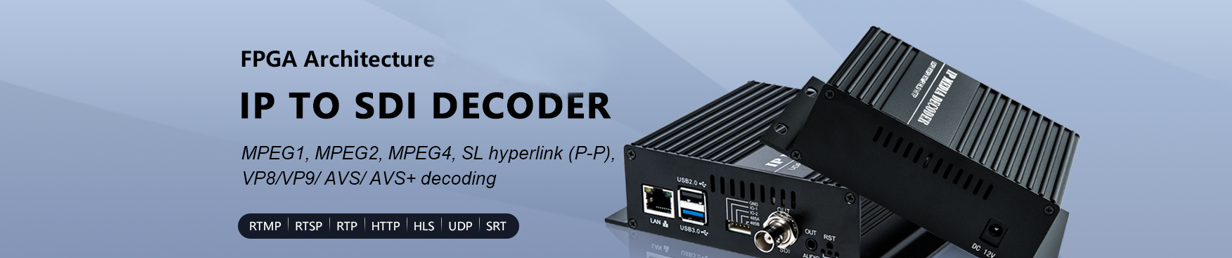

The Series EBD SRT IP decoders are designed for  H.264/ H.265 IP (RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP/ SRT), MPEG1, MPEG2, MPEG4, SL hyperlink (P-P), VP8/ VP9/ AVS/ AVS+ decoding.

New FPGA architecture based high performance decoder enables vividly high quality video output over an SDI connector (SD/ HD/ 3G).

Prices starts from SEK 4 995:-/pcs excl. tax. for 1 SDI output incl. 3 months SRT gateway (caller to caller mode).

IP Decoding

SRT Transmission

P-P Decoding

Broadcasting

Low cost - startprice from SEK 4 995:-/decoder

INPUT

H.264/ 265 IP (RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP/ SRT),MPEG1, MPEG2, MPEG4, SL hyperlink (p-p), SRT, VP8/ VP9/ AVS/ AVS+ (compatible with 4K stream).

OUTPUT

SDI: 1080P@ 60/50/ 24, 1080I@ 60/50, 720P@ 60/50, 576I/ P@ 50, 480I/ P @60.

Accessibilities

Power: 12V 2A  for Portable, 110-240VAC for 1/3 RU

Consumption: 2.8W for portable, 28W for 1U, ＜100w for 3RU

Working environment: -20C to +60C degrees.

Humidity: ＜90%, non-condensation

Weight

Portable - 0.3kg,

1U 1 Ch- 2.8 kg,

1U 4 Ch- 3 kg

3U 16 Ch: 7.5 kg

MODELS

EBD-IP101-SDI (1 SDI output, portable)

EBD-IP101-HDMI ( 1 HDMI output, portable)

EBD-IP201-HDMI ( 1 HDMI output, 1RU)

EBD-IP204-HDMI ( 4 HDMI output, 1RU)

EBD-IP316-HDMI ( 16 HDMI output, 3RU)

MULTIVIEW

1Ch- 1/ 4* TCP/ IP/ SRT Input

4Ch- 4/ 16 * TCP/ IP/ SRT Input

16Ch- 16/ 64 * TCP/ IP/ SRT Input

SRT IP cloudgateway för SRT caller to caller mode, EBG-IP-GW.

Entercast SRT cloudgateway for 3 month are included in every purchase. The cloud gateway give your encoder and decoder a SRT IP adress so no need of firewallopening or public ip adress is needed. It is Plug and Play for your SRT equipment. After 3 month you can extend it with 12month subscription for SEK 1200:- per year excl. tax. Item no. EBG-IP-GW.
